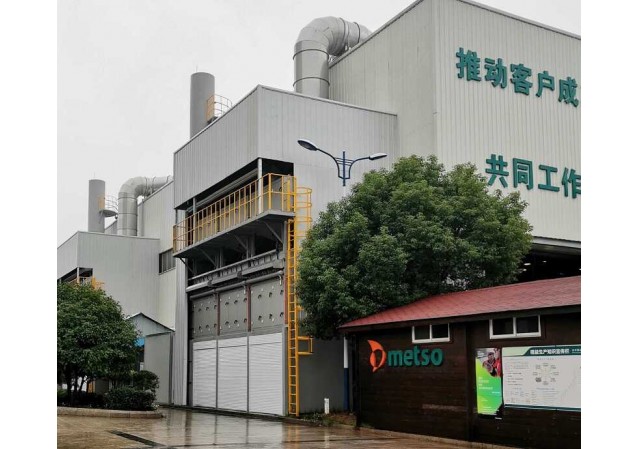

鑄造車間廢氣粉塵及有機廢氣凈化器
Product Description
設備名稱 | 鑄造車間廢氣粉塵及有機廢氣凈化器 | ||
設備尺寸 | 17m×5m×10.5m（長×寬×高） | ||
處理風量 | 100000 m3/h | 設備阻力 | 1500～2000 Pa |
粉塵凈化方式 | 濾筒除塵 | 過濾面積 | 1875㎡ |
清灰方式 | 壓縮空氣脈沖反吹 | 噴吹壓力 | 0.2～0.5 MPa |
廢氣凈化方式 | 活性炭吸附催化燃燒 | 有機廢氣吸附 | 蜂窩活性炭 |
脫附方式 | 離線電加熱催化燃燒 | 脫附風量 | 5000 m3/h |
VOCs排放濃度指標 | ≤50 mg/Nm3 | 顆粒物排放濃度指標 | ≤20 mg/Nm3 |
NMHC排放濃度指標 | ≤50 mg/Nm3 | ||
排放標準 | T/CFA030802-2-2017 《鑄造行業大氣污染物排放限值》 GB16297-1996 《大氣污染物綜合排放標準》 | ||
Product Parameters
| Product Name | 鑄造車間廢氣粉塵及有機廢氣凈化器 |
|---|---|
| Project Unit | |
| Use | |
| Furnace Size | |
| Working Size | |
| Rated Heating Power | |
| Rated Temperature | |
| Heating Element | |
| Shielding Gas In The Furnace | |
| Vacuum | |
| Loading | |
| Maximum Temperature | |
| Furnace Temperature Uniformity | |
| Features | |
| Maximum Production | |
| Way To Heat Up | |
| Furnace Gas Circulation System | |
| Specification | |
| Flue Gas Temperature | |
| Hot air temperature |
